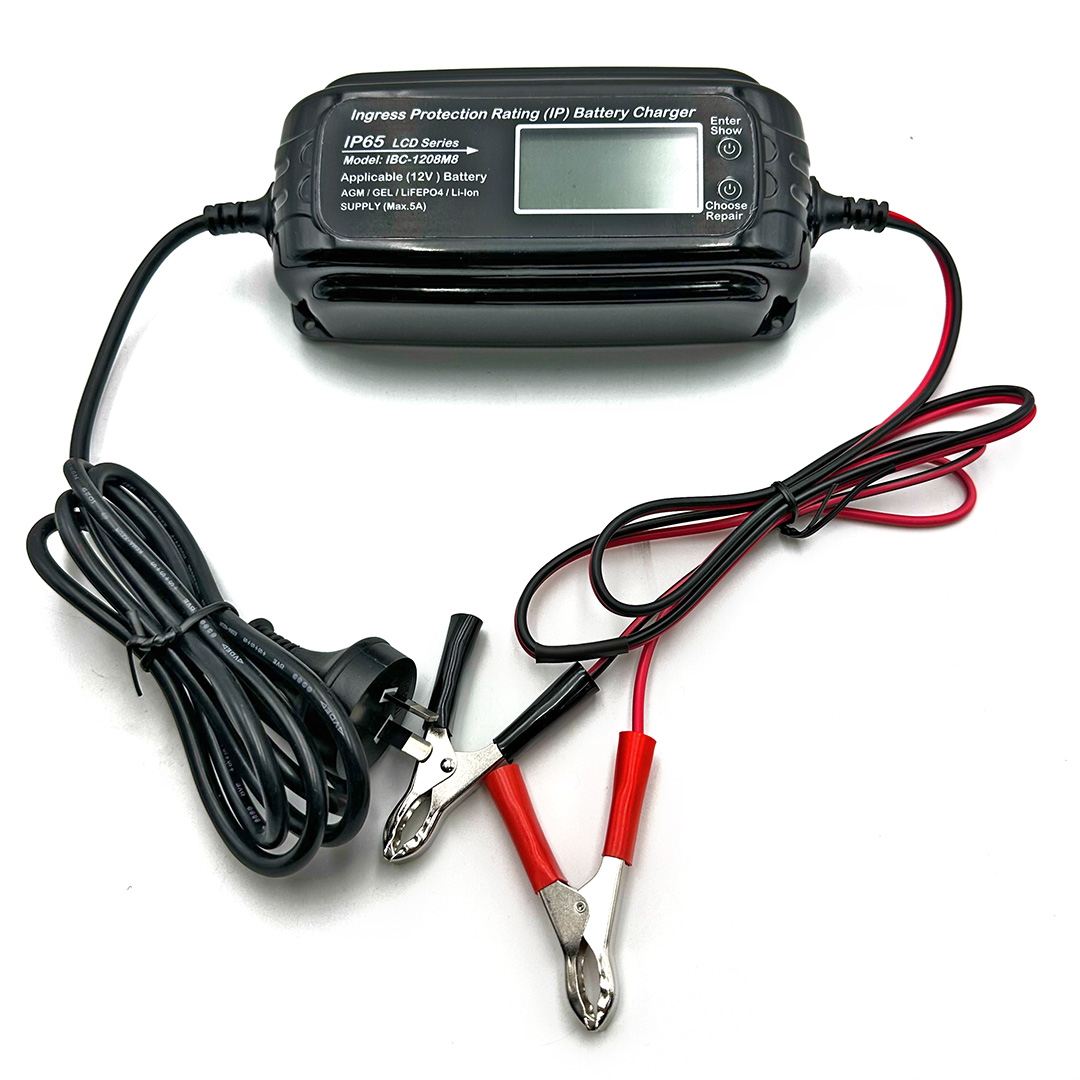

Battery Charger perfect for car, bike and golf carts.
Product Features
- Intelligent Fully Automatic Battery Charger
- Selectable 2amp, 4amp, 8amp output
- 8 steps (4 steps for LiFEPO4/ Li-ion) smart charge algorithm

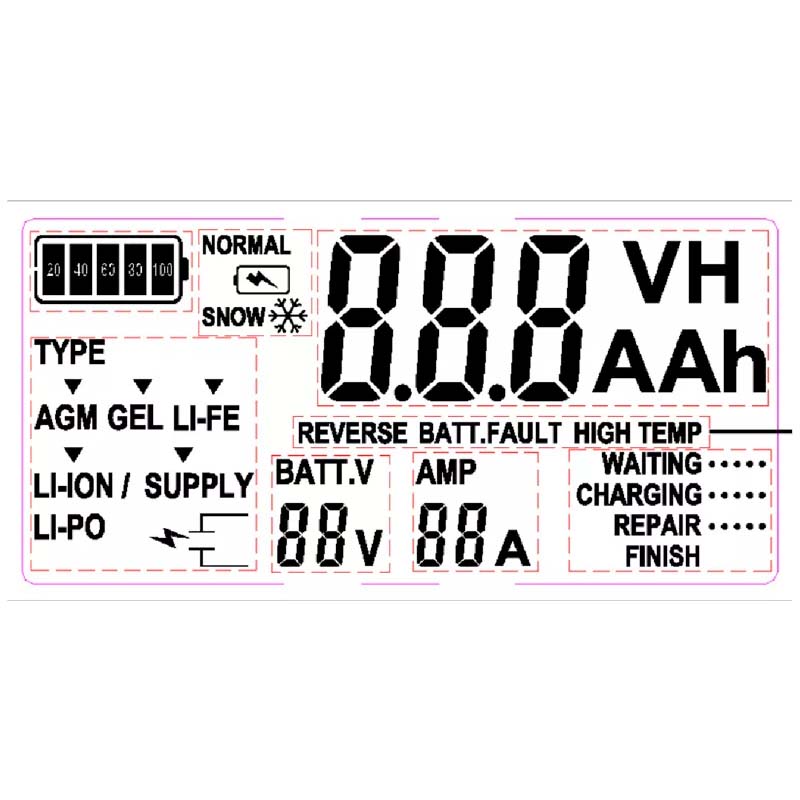

- Unique and multifunctional LCD display
- Low power mode to charge smaller batteries
- AGM/ GEL/ LiFEPO4/ Li-ion/ Power supply mode
- Batteries life enhancing features
- Battery Repair Mode
- Suitable for Car or Motorcycle
- Crocodile Clip Ends
Specifications
| Feature | Specification |
|---|---|
| Model No. | IBC-1208M8 |
| Charging Battery Type | 8-Stage (GEL/ AGM/ LiFEPO4/ Li-ion/ Li-PO) |
| Input Voltage | 200-240Vac |
| Frequency | 50-60HZ |
| Output Voltage | 12 Volt |
| Current (Max.) | 2A, 4A, 8A (Selectable) |
| Min. Battery Voltage | >8 Volt |
| Battery Capacity | 8~100Ah (AGM/GEL) 4~100Ah (LiFEPO4/ Li-ion/ Li-PO) |
| Environment | 0 ~ +35 ℃, 20 ~ 80% RH |
| Display | Unique and multifunctional LCD display |
| Dimensions | 208x94x63mm (L*W*H) |
| Weight | 0.9Kg |
Charging Cycle Stages
| Stage | Details |
|---|---|
| Pulse / Desulphation (1) | 14.6V (if battery <10V) except for Li-ion & LiFEPO4 |
| Soft Start (2) | 4Amp until 12V |
| Bulk (3) | 8Amp until 14.4V (AGM) 14.2V (GEL) 14.6V (LiFEPO4) 16.8V (LI-ION/ LI-PO) |
| Absorption (4) | Increasing voltage to 14.6V 0.8A |
| Analysis (5) @1min | Go to next if battery >12V; go to fault if battery <12V |
| Recondition (6) @1 hour | 4Amp until 15.4V (AGM) or 15.0V (GEL) |
| Float (7) (AGM/GEL only) | 13.8V (AGM) or 13.6V (GEL) 0.4A (max.); Stop charging if <0.1A |
| Maintain (8) | 13.8V 4A to charge battery if battery <12.5V (AGM) 13.6V 4A to charge battery if battery <12.5V (GEL) 14.6V 8A to charge battery if battery <12.5V (LiFE) 16.8V 8A to charge battery if battery <13.0V (Li-ion) |
