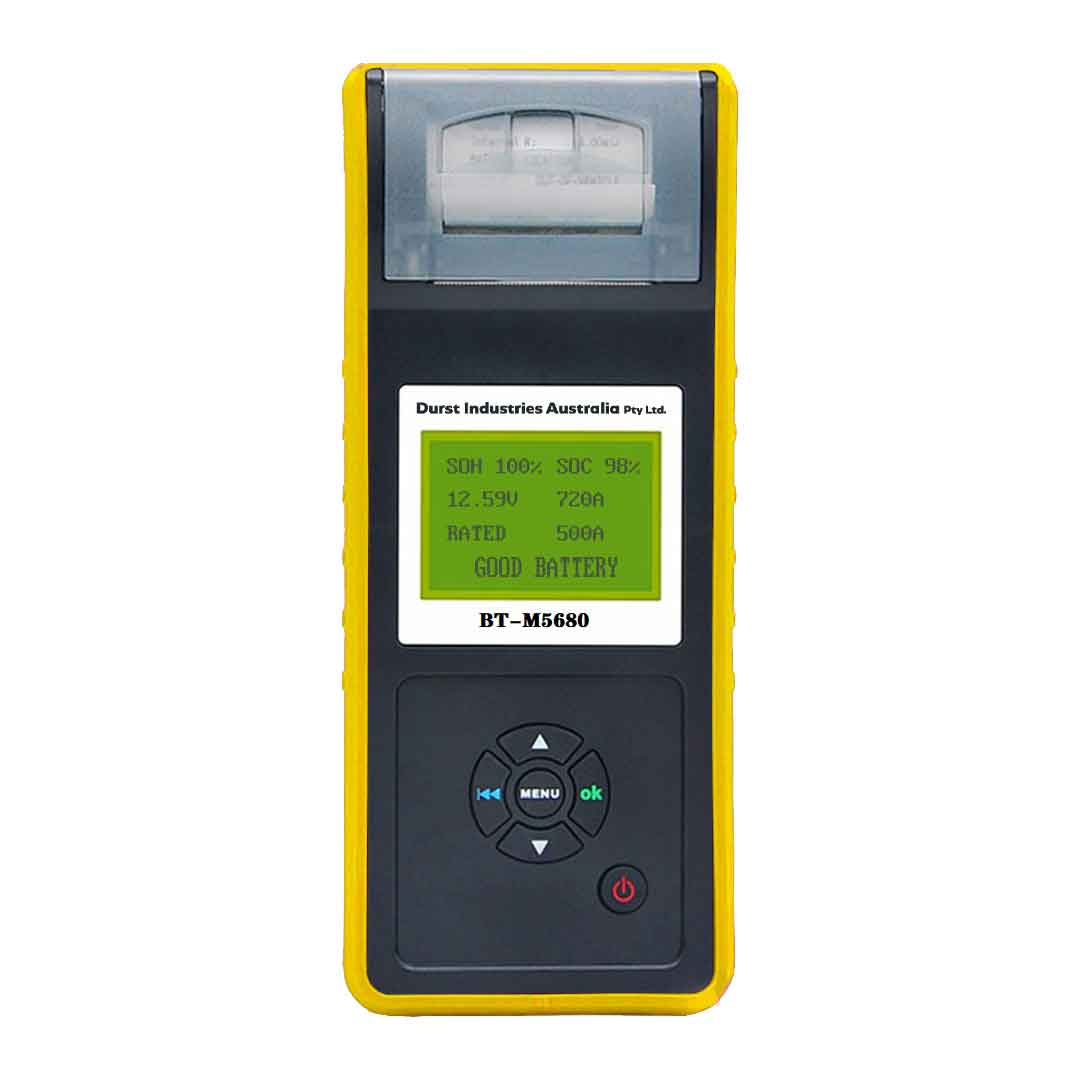

Battery Tester with Printer – Advanced Vehicle Battery Analyser
Fast & Accurate Battery, Starter, and Charging System Diagnostics
The Battery Tester with Printer is a high-performance diagnostic tool designed to quickly and accurately assess vehicle batteries, starter systems, and charging systems. Using advanced conductance testing technology, it measures cold cranking amps (CCA), battery health, and internal resistance, helping identify potential issues before they lead to battery failure.
With a built-in thermal printer, this analyser allows users to print test results instantly, making it ideal for automotive workshops, fleet management, and professional battery testing services.
Key Features:
- Comprehensive Battery Testing – Measures CCA rating, state of charge, internal resistance, and battery life expectancy.
- Instant Test Printing – Integrated thermal printer for quick result documentation.
- Quick & Reliable – Provides diagnostic results in under 5 seconds.
- Battery Test with or without Installation – Works with batteries installed in the vehicle or removed.
- Digital Display – Shows voltage, resistance (mΩ), and remaining battery life (%).
- Multistandard Compatibility – Supports testing for CCA, SAE, DIN, IEC, JIS, EN, and other battery standards.
- Starter System Test – Evaluates starter current draw to detect potential faults.
- Alternator & Charging System Test – Assesses charging voltage, rectifier diodes, and ripple voltage performance.
- Multilingual Support – Available in English, German, Italian, and Spanish.
Battery Test Functionality:
- Works with 6V & 12V vehicle batteries.
- Displays “Good” or “Replace” results based on battery condition.
- State of charge shown digitally in volts.
- Internal resistance measured in mΩ.
- Battery life expectancy displayed as a percentage.
- Supports battery testing standards including CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB.
Starter & Charging System Tests:
- Starter Test – Quick assessment of starter current draw to determine if the battery is too old or if the starter has issues.
- Charging System & Rectifier Diode Test – Checks alternator performance, charge state, and ripple voltage.
- Alternator Test – Conducts a charge state test at 2000 RPM and a loaded voltage test at 3000 RPM.
Technical Specifications:
- Voltage Range: 5V – 18V DC (max.)
- Analysis Time: <5 seconds
- Test Capacity:
- CCA: 100 – 1700A
- IEC: 100 – 1700A
- JIS: 100 – 1700A
- EN/DIN: 100 – 1000A
- Dimensions: 245 × 105 × 50 mm
- Weight: 800g

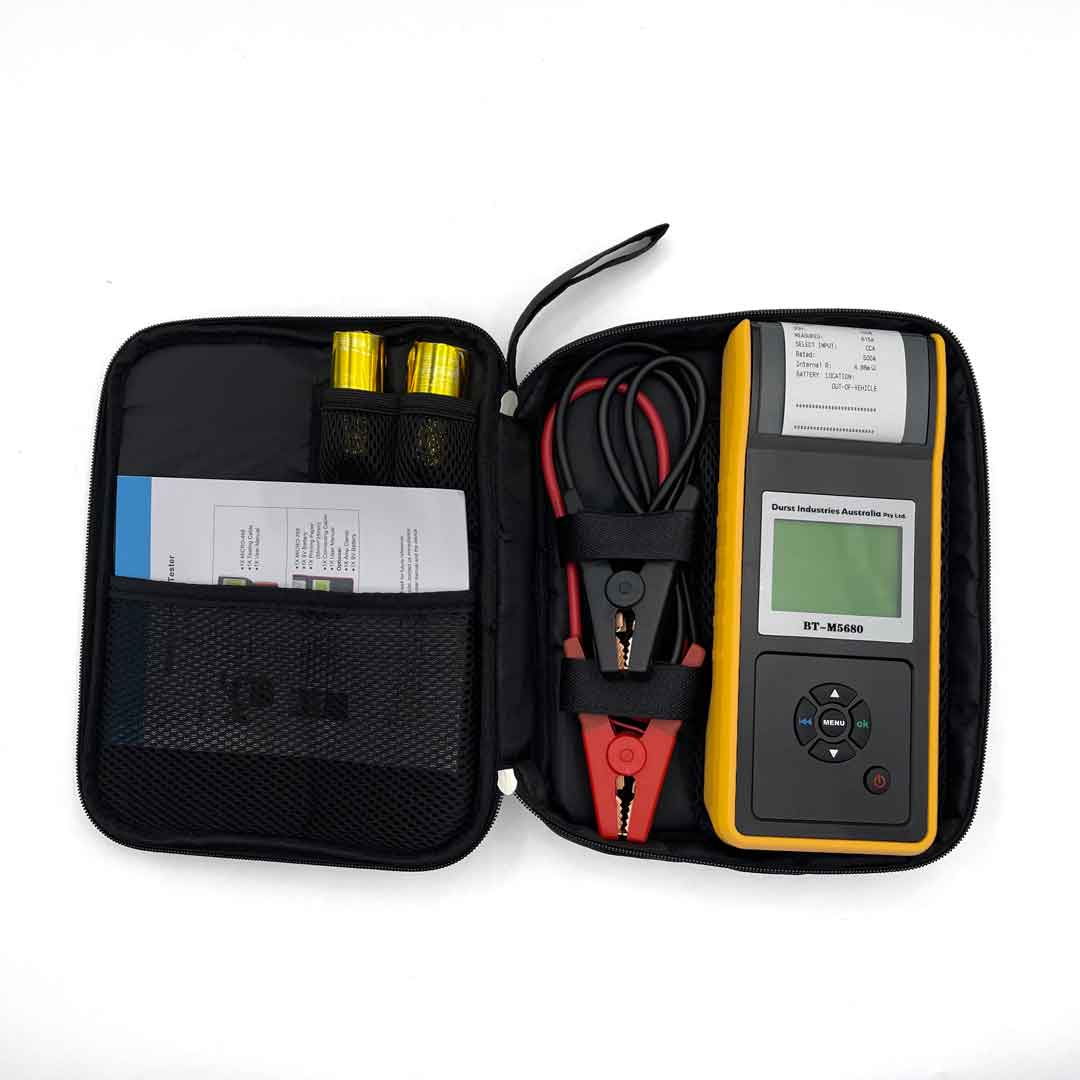

What’s Included:
- Battery Tester with Built-in Thermal Printer
- Battery Connection Clamps (Removable)
- Protective Transport Bag
- User Manual & Technical Documentation
Designed for automotive professionals, workshops, and fleet operators, this battery tester with printer is the perfect tool for accurate, efficient, and documented battery diagnostics.
