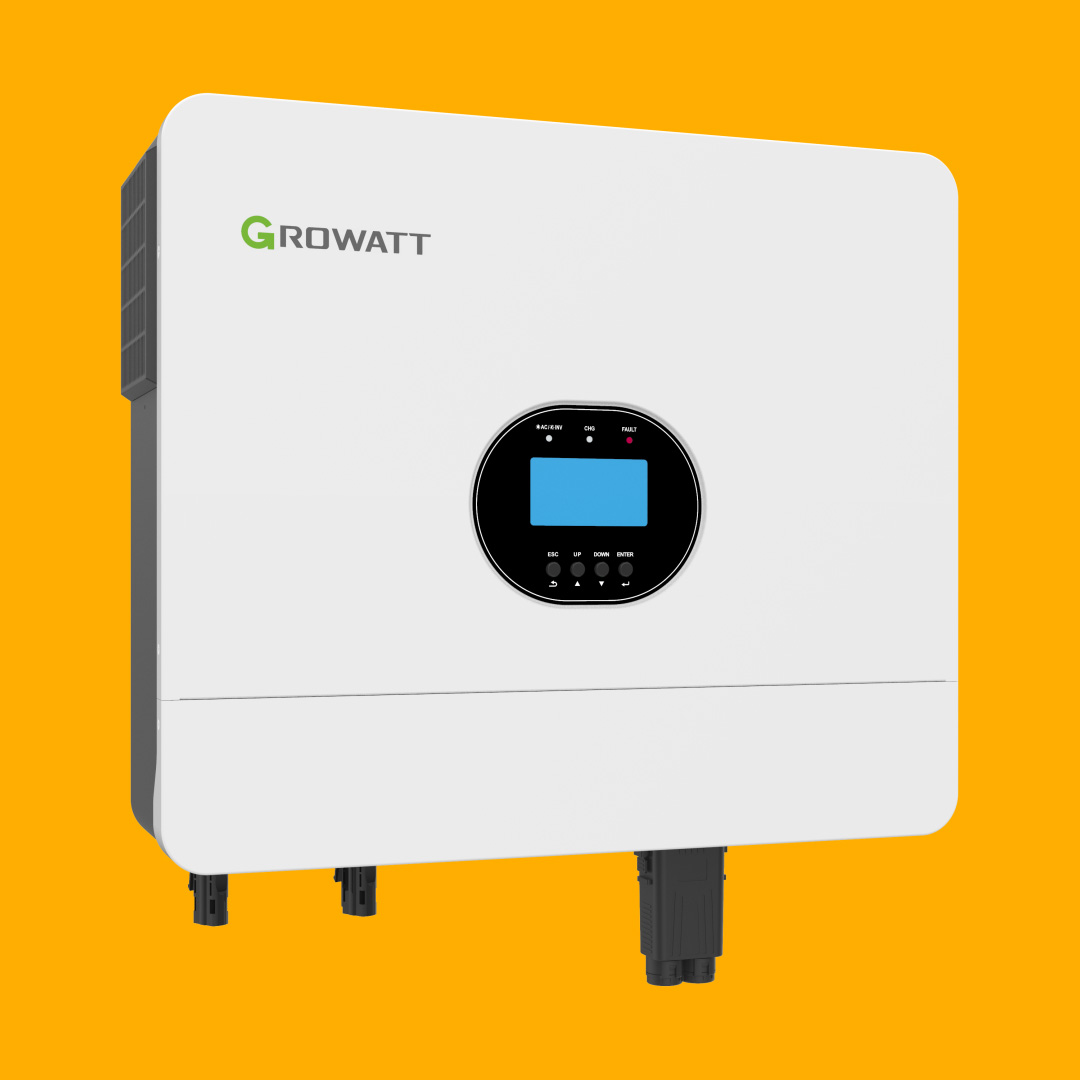

Growatt 6000 ES Plus Inverter
6kW Hybrid Inverter with MPPT & Off-Grid Capability
The Growatt 6000 ES Plus Inverter is a powerful and versatile hybrid solar inverter designed to manage solar, battery, and grid power with ease. Delivering 6000W of rated output and up to 12,000VA surge capacity, this unit is ideal for home solar installations, off-grid systems, and commercial backup setups. With the ability to operate with or without batteries, the Growatt 6000 ES Plus offers unmatched flexibility for both new and upgraded systems.
Equipped with an integrated 100A MPPT charge controller, the inverter supports up to 8000W of PV input and handles PV voltages up to 500VDC, making it suitable for high-performance solar arrays. With parallel support for up to six units, you can scale your system as your energy needs grow.
Key Features of the Growatt 6000 ES Plus Inverter
- 6000W Rated Power – Ideal for homes, workshops, and small commercial systems
- Dual Voltage Operation – Works seamlessly with 12V/24V battery banks
- Integrated MPPT Controller (100A) – Supports up to 8000W solar input with a wide 120–450VDC MPPT range
- Pure Sine Wave Output – Safe and stable for sensitive electronics and appliances
- Works With or Without Battery – Operates independently or in hybrid configurations
- Surge Capacity: 12000VA – Handles startup loads with ease
- Parallel Ready – Expandable up to 6 units for higher system output
- Selectable Input Priority – Configure grid or solar as the primary power source
- Remote Monitoring Optional – Supports WiFi/GPRS for off-site system access
- High Efficiency – Up to 93% peak efficiency for maximum energy use
- Fast Transfer Time – 10ms typical switch ensures minimal downtime
Technical Overview
Battery Compatibility
- Voltage: 48VDC
- Supported Types: Lithium, Lead-acid
Inverter Specs
- Rated Power: 6000VA / 6000W
- Surge Power: 12000VA
- Voltage Regulation: 230VAC ± 5%
- Frequency: 50/60Hz (Auto-sensing)
- Waveform: Pure Sine Wave
- Transfer Time: 10–20ms
Solar Input
- Max PV Array Power: 8000W
- MPPT Voltage Range: 120–450VDC
- Max Open Circuit Voltage: 500VDC
- Charge Current: 100A
- MPPTs: 2
- Strings per Tracker: 1
AC Charging
- AC Input Voltage: 230VAC
- Selectable Range:
- 170–280V (computers)
- 90–280V (appliances)
- AC Charge Current: 80A
Physical & Environmental
- Protection Level: IP20
- Dimensions: 460 x 395 x 132mm
- Net Weight: 13.5kg
- Operating Temp: 0°C to 55°C
- Storage Temp: -15°C to 60°C
- Relative Humidity: 5% to 95% (non-condensing)
- Altitude: <2000m
- Warranty: 2 Years
How to Use the Growatt 6000 ES Plus Inverter (Step-by-Step Guide)
Step 1: Mount the Unit
- Choose a dry, well-ventilated indoor space
- Secure the inverter vertically on a wall using mounting brackets
Step 2: Connect the PV Input
- Wire your solar panels to the PV input terminals
- Ensure polarity is correct and voltage is within the 120–450VDC MPPT range
Step 3: Battery Connection (Optional)
- Connect a 48V lithium or lead-acid battery to the battery terminals
- Use appropriate cable size and fuse based on your battery bank capacity
Step 4: Grid Connection (if applicable)
- Connect the AC input from the grid to the inverter
- This allows charging the battery or powering loads when solar is low
Step 5: AC Output Wiring
- Connect your house loads or circuits to the AC output terminals
- Ensure total connected load is within 6000W
Step 6: Initial Configuration
- Power on the unit
- Set your input priority (Solar/Grid/Battery) via onboard LCD or app
- Configure battery type and charge parameters
Step 7: Activate Monitoring (Optional)
- Install and configure the WiFi or GPRS module
- Use the Growatt ShinePhone app or web portal to track performance
Do’s and Don’ts When Using the Growatt 6000 ES Plus Inverter
✅ Do:
- Use correct cable sizes as recommended in the manual
- Check polarity on PV and battery connections before powering on
- Keep firmware updated via Growatt’s software or app
- Ensure adequate ventilation for heat dissipation
- Use a qualified electrician for installation and commissioning
❌ Don’t:
- Don’t exceed 8000W PV input or 500V open-circuit voltage
- Don’t connect to incompatible battery types (e.g. low-voltage lithium)
- Don’t install outdoors or in damp environments (IP20 rated only)
- Don’t place flammable materials near the unit
- Don’t operate if any warning indicators are active—check faults first
Get Your Growatt 6000 ES Plus Inverter at Power Start
From flexible power management to high solar input capacity, the Growatt 6000 ES Plus Inverter is engineered to deliver efficient, scalable, and smart energy solutions. Get your Growatt 6000 ES Plus Inverter at Power Start.
